SOTO-G3 Air Purifier

Smart control system, integrated electrostatic adsorption technology and mechanical filtration, combined air treatment technologies provide comprehensive protection against airborne pollutants.
Multi-stage air purification
smart control system
G3 combines multiple air treatment technologies. The innovative integration of electrostatic adsorption technology and mechanical filtration deliver better air purification results. The smart control system monitors various functions and is easy to use. When the relative humidity of the air exceeds 75%, the electrostatic adsorption system will shut off automatically to prevent unit malfunction.
Multi-stage air purification<br/>smart control system
Multi-stage air purification<br/>smart control system
Plasma electrostatic adsorption device destroys pathogens
Plasma electrostatic adsorption device destroys pathogens
Measurements and calculations of plasma temperature and density in the discharge area proved that the plasma electrostatic adsorption device can effectively destroy all pathogens in the air. The charge leakage index of each monitoring point was less than 0.5, within the measurement error range, proving no plasma charge leakage was detected.
Smart control system
easy to operate
Smart control system
easy to operate
The smart control system monitors various functions and is easy to use. It displays unit status and real-time air quality. When the relative humidity of the air exceeds 75%, the electrostatic adsorption system will shut off automatically to prevent unit malfunction.
Multi-stage air purifying technologies deliver better air purification
Multi-stage air purifying technologies deliver better air purification
G3 combines multiple air treatment technologies-Pre filter, Two-stage electronic cell, HEPA filter, Activated carbon filter, UV-PCO system and Negative ion generator. The innovative integration of electrostatic adsorption technology and mechanical filtration deliver better air purification results.
UV-PCO system destroys harmful chemical pollutants
UV-PCO system destroys harmful chemical pollutants
UV-C light kills bacteria and viral microorganisms. When the germicidal UV-C light hits the photo catalytic filter, it creates numerous e- and h+, generating strong oxidizing free radicals, which actively destroys harmful substances in the air.
Purify and disinfect the air
in human presence
The primary air purification components of G3 are the two-stage cell, the HEPA filter and the UV-PCO system. Testing has shown that ozone residue of this unit is well within the allowed level in safety regulations. The unit has been proven to be safe and can be operated in a room with people.
Purify and disinfect the air <br/>in human presence
Purify and disinfect the air <br/>in human presence
Multi-stage air filters
smart control system
G3 combines multi-stage air purifying and disinfection technologies to provide rapid air purification results. The smart control system features comprehensive content and simple operation.
Multi-stage air filters<br/>smart control system
Smart control system
UV-PCO system
Multi-stage air filters
Smart control system
Monitors various functions and is easy to use, displaying unit status and real-time air quality.
UV-PCO system
Kills pathogens and destroys harmful chemical pollutants in the hydroxyl radical reactivity chamber.
Multi-stage air filters
Combines multiple air treatment technologies-Pre filter, Two-stage electronic cell, HEPA filter, Activated carbon filter, UV-Photo catalytic system and Negative ion generator.
Smart control system
UV-PCO system
Multi-stage air filters
Smart control system
Monitors various functions and is easy to use, displaying unit status and real-time air quality.
UV-PCO system
Kills pathogens and destroys harmful chemical pollutants in the hydroxyl radical reactivity chamber.
Multi-stage air filters
Combines multiple air treatment technologies-Pre filter, Two-stage electronic cell, HEPA filter, Activated carbon filter, UV-Photo catalytic system and Negative ion generator.
App operation
App operation
Operation anytime and anywhere by using mobile phone APP.
Remote control
Remote control
Simply operate the unit by using the remote control.
RH display
RH display
RH> 75%, electronic cell will shut off to prevent unit malfunction.
Release negative ions
Release negative ions
Freshens indoor air and remove unpleasant smell.
Full compliance with the Technical Standard for Disinfection of China
Run the unit for 2 hours at the maximum speed in a 120m³ spaces, three repeated tests have all achieved the natural bacteria extinction rate of more than 90% for indoor air. It meets the requirements of disinfection by the "Technical Standard for Disinfection" (2002 Edition) - (Report No. 201910285R01a)
Full compliance with the Technical Standard for Disinfection of China
Full compliance with the Technical Standard for Disinfection of China
Trusted expertise, trusted brand
G3 has powerful air purification and disinfection ability, providing healthier indoor air. G3 is perfectly suited for medical, commercial, or industrial environments and becomes a favorable choice of healthcare professionals worldwide.
Hospital
Hospital
school
school
SOTO premium air purifier, trusted by medical professionals
G3 is an air purifier with innovative integration of electrostatic adsorption technology and mechanical filtration that delivers high performances. The smart control system monitors various functions and is easy to use. Solid and durable all-metal construction with simple black-and-white design allows the unit to fit any decor. It is widely used in healthcare facilities and has been the preferred choice by healthcare workers around the world.
SOTO premium air purifier, trusted by medical professionals
SOTO premium air purifier, trusted by medical professionals

Specifications

  • Product name
    SOTO-AE/ Code601FN Air Purifier
  • Model No.
    SOTO-AE/ Code601FN
  • Model Abbr
    SOTO-G3
  • Power
    220V, 50Hz
  • Power Req
    200W
  • UV Lamp
    2x24W/ H-shape
  • Negative Ion
    3x10⁶/cm³
  • Applicable Area
    43m²
  • Operation
    Touch operation/ Remote control/ App
  • CADR
    P-CADR=632m³/h

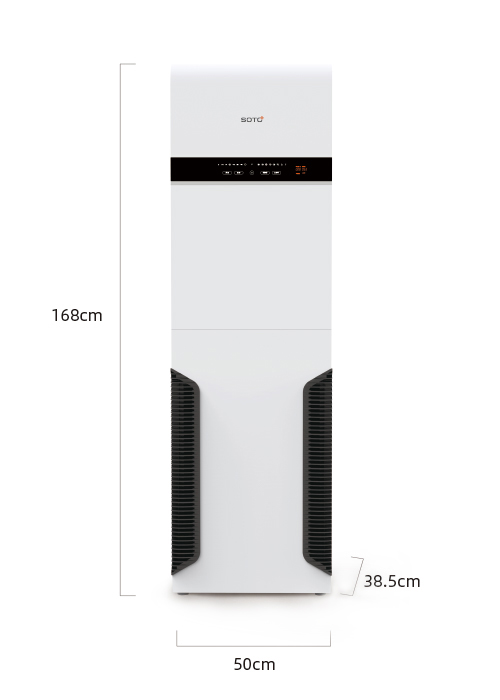

  • Dimensions
    W50cmx D38.5cmx H168cm
  • Weight
    66kg
  • Colour
    White
  • Power Cord
    2.5m
  • Guide
    Operate the unit for 2 hours at high air speed in 120m³ indoor space, with UV and negative ion turning on
  • Main Parts
    Metal Pre filter/ Two-stage electronic cell/ HEPA filter/ Activated carbon filter/ UV-Photo catalytic system/ Negative ion

FAQ

What is an integrated air disinfection technology?

The integrated air disinfection technology incorporates two different mechanisms to clean the air, electrostatic adsorption and HEPA filtration. The electrostatic component removes most airborne particles to prevent them from clogging the HEPA filter. Therefore, the service life of the HEPA filter is extended, and the cost of filter replacement is significantly reduced. The electrostatic adsorption device can be washed and reused.

What is the advantage of having a humidity sensor switch?

The smart sensor switch turns off the electrostatic adsorption device when the air relative humidity exceeds 75% while still allowing HEPA filtration to continue to operate. The electrostatic adsorption device automatically resumes normal operation once the humidity drops back to 60% . This is to prevent the electrostatic compartment from damages caused by high air humidity.

How to open G3 for maintenance?

The interior of G3 can be accessed for maintenance by opening the air inlet panel. The electrical power will be automatically cut off to ensure safety when the panel is opened. No tools are needed for routine maintenance.
